Vacuum Suction Shale Shaker

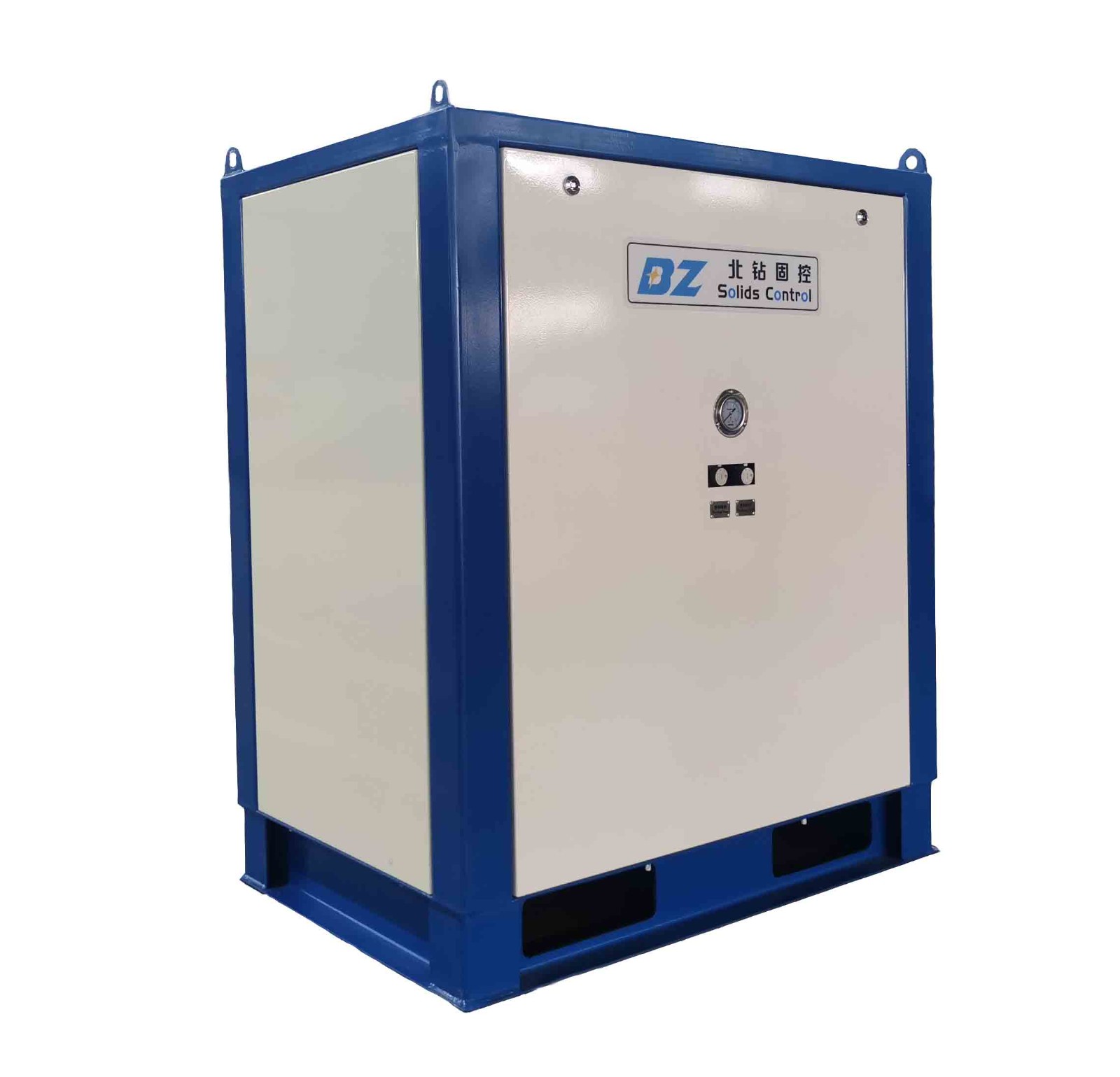

BZ vacuum suction device is a device working together with shale shakers to reduce drilling waste and recycle more drilling fluids.

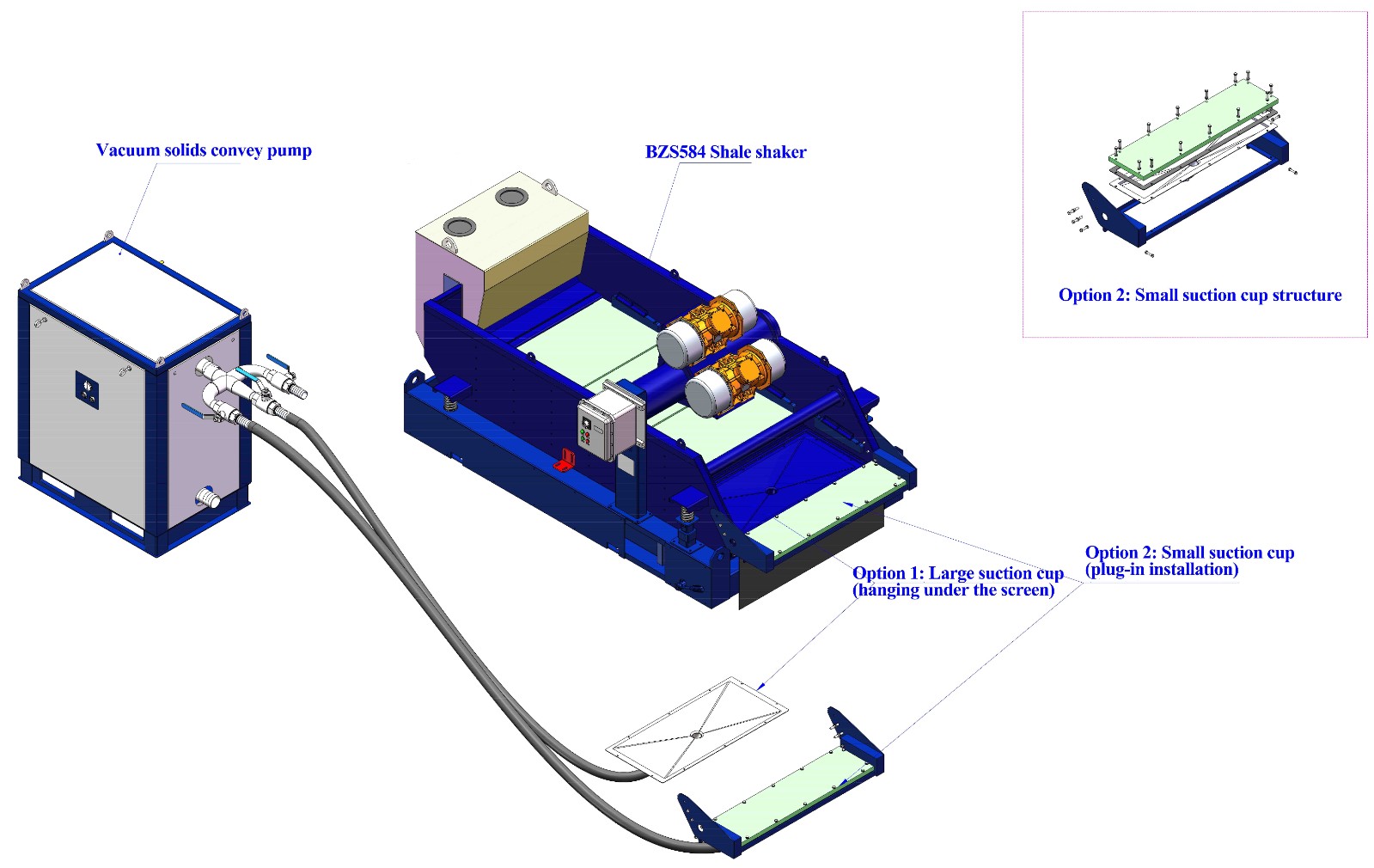

A suction pan is installed under the last screen of shale shakers. A suction hose is connected with vacuum device. Compressed air from air compressor is required to create vacuum suction on the last screen, pulling additional fluid off the cuttings by 20%-30%. In a result, maximizing the volume of recovered drilling fluids and geting dryer cuttings. Saving money on drilling fluid and drilling waste management.

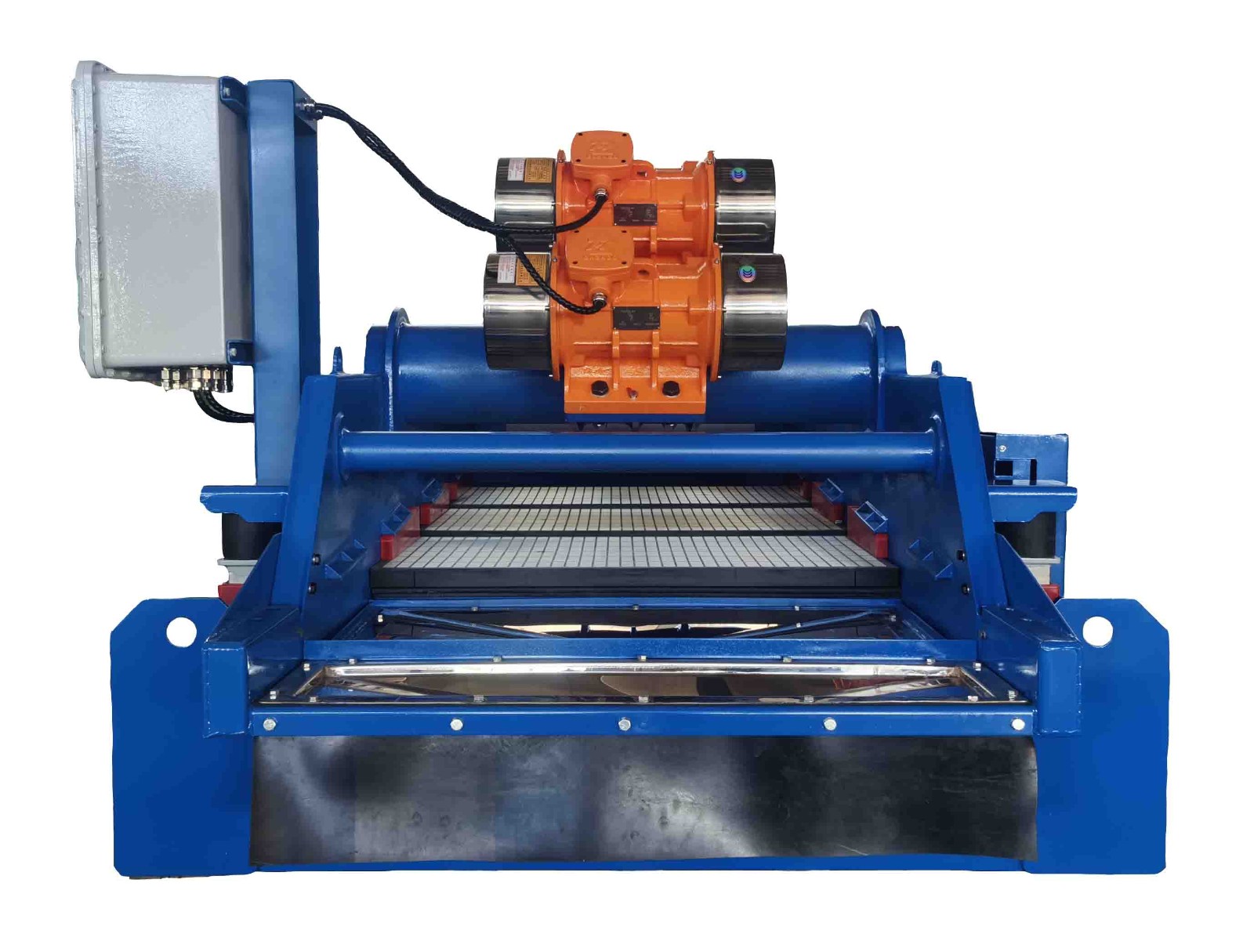

FBZS Vacuum Suction Shale Shaker
Model FBZS583 FBZS584
Vibration mode Liner Motion
Capacity ≤120m³/h ≤140m³/h
Motor 2×2.2kW
Screen Qty(pcs) 3 4
Screen Size 585×1165mm 585×1165mm
Adjustable G Force ≥7.5G
Vibration Amplitude 4.5~6.0mm
Deck Angle -1°~5°
Supply Air Pressure 0.55MPa-0.69MPa(5.6-7.0kgf/cm²)
Air Capacity Required 7.9m³/min
Recovery Effciency 30%-50%
EX Standard ExdIIBt4/IECEX/A-TEX
Weight 1420kg 1570kg
Dimension 2140×1978×1415mm 3004×1978×1415mm
Remark No electrical, air operated, adjustable suction time
Features:
·         Widely be applicated on OBM, SBM, and WBM treatment. Recovering more drilling fluid and reducing drilling waste
.         Be suitable to treat high viscosity drilling fluid, drilling waste and oil sludge

·         Both onshore and offshore application
·         Less foot print and easy installation without welding
·         Finer shaker screen can be used to improve solids control efficiency
·         No electric power required, be suitable to work in hazardous areas
.         One vacuum device can be connectted with 2 shale shakers mostly
·         Suction and discharge time is adjustable according to different drilling conditions
