Smart Solids Control and Separation Equipment

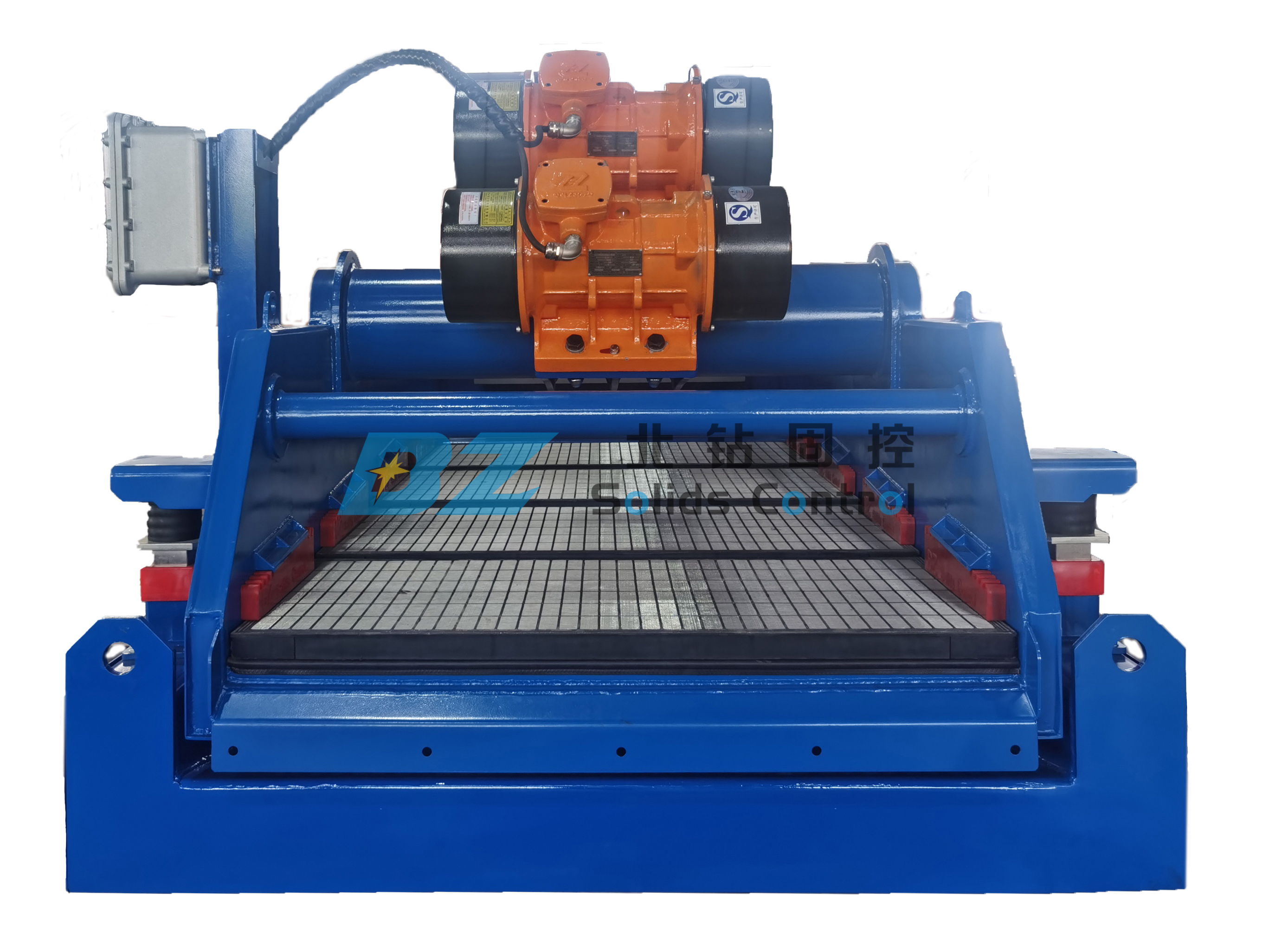

Smart Shale Shaker

BZ smart shale shaker is the first-phase solids control equipment  in drilling fluids processing system, also known as key solids control equipment in drilling mud  recycling system. Shale shaker decides the performance of whole solids control system.

BZ solids control can design and produce double shakers and triplicate shakers on single skid according to clients’ requirements and supply relevant connecting manifold according to different industry applications. BZ shale shaker has advantages of smart control, high G force, wide screen area, compact structure and adjustable deck angle.

Shale shaker is used in many industries such as oil and gas drilling, coal bed methane( CBM ), horizontal directional drilling ( HDD ), diamond drilling, water well drilling ., etc




BZS Shale Shaker Specification

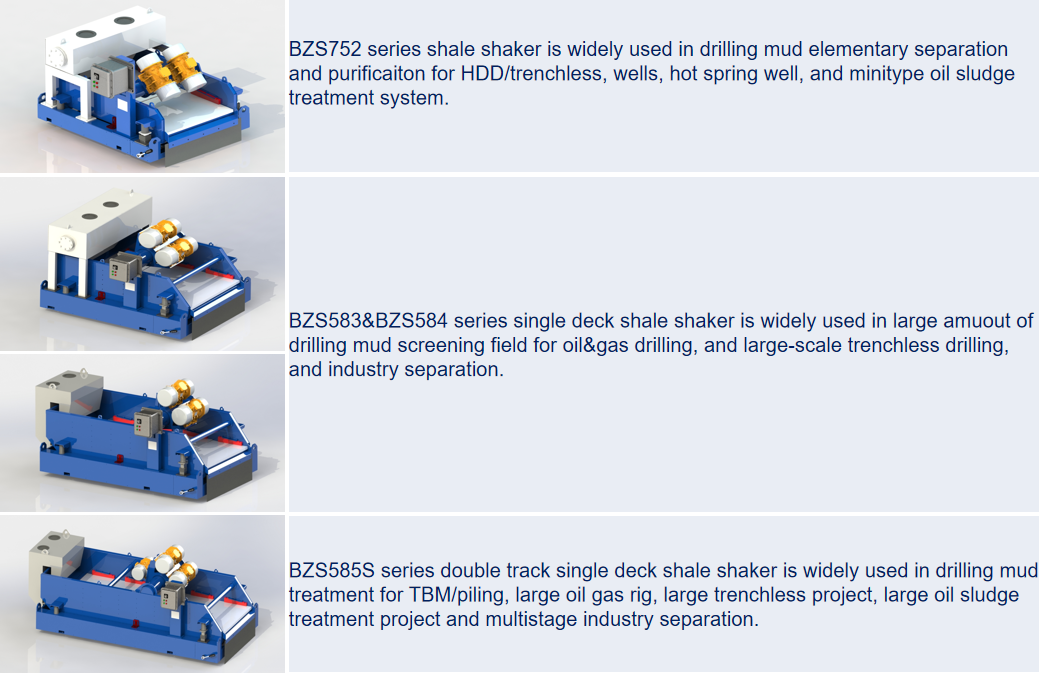

Model BZS752 BZS583 BZS584  BZS585/BZS585S BZS586D
Vibration mode  Liner Motion / Double Track
Capacity 60m³/h 120m³/h 140m³/h 165m³/h 140m³/h
Motor 2×0.8kW 2×2.2kW 2×2.2kW 2×2.2+1×1.3kW 2×2.2kW
Screen Qty(pcs) 2 3 4 5 6
Screen Size 750×900mm 585×1165mm 585×1165mm 585×1165mm Up:750×900mm
Down:585×1165mm
Adjustable G Force ≥7.5G(Adjustable)
Vibration Amplitude 4.5~6.0mm 4.5~6.0mm 4.5~6.0mm 4.5-6.3mm 4.5-6.3mm
Deck Angle 0~+2° -1°~+5°
Noise <85db
EX Standard ExdIIBt4/IECEX/A-TEX
Weight 900kg 1380kg 1530kg 1950kg 1630kg
Dimension 1659×1321×1040mm 2415×1978×1415mm 3004×1978×1415mm 3597×1978×1415mm 3004×1978×1415mm
Remark Above capacity amount is just for reference, will be different depending on mesh number and mud conditions.

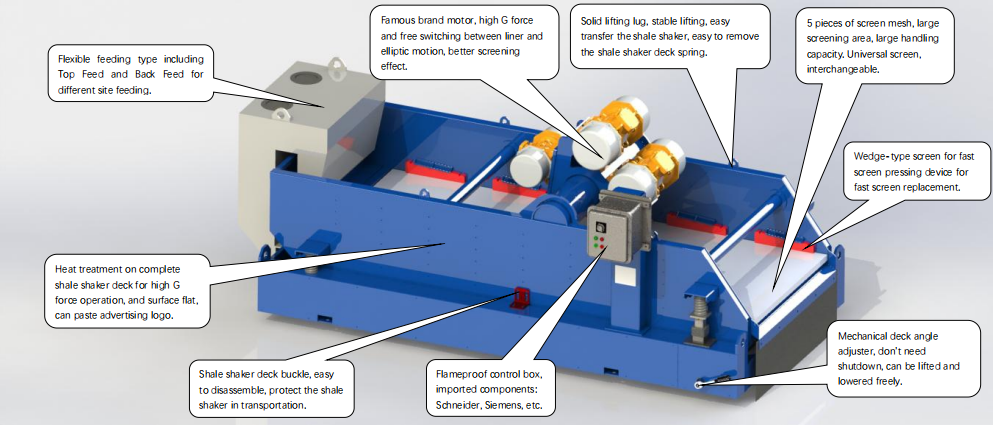

BZ Shale Shaker Dominance Diagram



Features:
·         Smart control, high and adjustable G force, big screen area, adjustable deck angle, high processing capacity on different materials
·         Shale shaker bottom deck is made of stainless steel, long service life
·         Heat treatment on complete shale shaker deck for high G force operation
·         Pretensioned shale shaker screen for fast screen replacement
.         Flexible feeding types including weir feeding, top feeding, and hopper feeding are available
·         Famous brand vibration motors : IEC Ex, ATEX and UL certified
·         Electrical components: SIEMENS or Schneider
