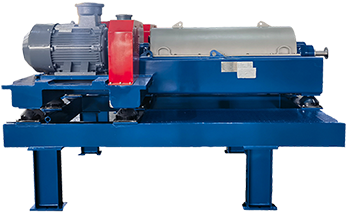

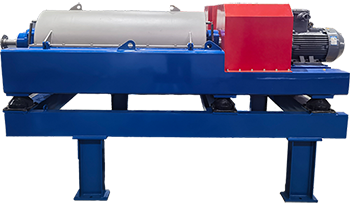

Decanter Centrifuge

Decanter centrifuge is the 4th solids control equipment in oil and gas drilling solids control system. By principle of centrifugal sedimentation separation, it is used to process drilling mud discharged from desilter and mud cleaner, separating solids particles from 2μm to 7μm. It is a solids control equipment to separate smallest solids particles, balancing mud viscosity and recovering mud weight.

BZ decanter centrifuge is mainly applicated in oil and gas drilling solids control, drilling waste management, oil sludge treatment and other solids and liquid separation industries.

According to different rotation speed, BZ decanter centrifuge can be divied into high speed centrifuge which is mainly used in oil and gas drilling solids control and waste management, middle speed centrifuge which is mainly used in HDD, TBM and piling mud recycling. Also, BZ centrifuge is optional in fixed frequency drive and variable frequency drive.

BZ decanter centrifuge has a wide range of bowl length and diameter ration which are suitable for different applications. High capacity and good performance result on drilling fluid recycling.

BZLW Decanter Centriguge Specification
Model BZLW220-930 BZLW355-1250 BZLW450-1000 BZLW550 BZLW650
Bowl Diameter 220mm  350mm  450mm  550mm  600mm
Bowl Length 930mm 1250mm 1000mm 2200mm  2800mm
Max Capacity  ≤5m³/h  ≤40m³/h ≤60m³/h ≤80m³/h  ≤100m³/h
Max Bowl Speed  4500RPM  3200RPM  2200RPM 3000RPM  2800RPM
Max G Force 2835 2435 1215 2436 2273
Particle Point  2~5μm  5~7μm 2~5μm
Main Motor Power 11kw  37kw  30kw 55kw  75kw
Helper Motor Power 4kw  11kw   7.5kw 15kw  30kw
EX Standard ExdIIBt4/IECEX/A-TEX
Weight  1500kg    2750kg  2800kg 6400kg 8500kg
Dimension 2640x720x920mm    2960x1550x1730mm    2750X1550X1750mm 4010X2000X1850mm 4623X2000X1900mm
Remark Max capacity is for clean water, Fixed speed and frequency conversion centrifuges are available


Features:
.        Wide range of bowl diameter which can meet different mud cleaning applications
.        Big bowl diameter and rotation speed, high G force, large mud treatment capacity
.        Bowl length and diameter ration is up to 3, separate efficiently 2-7μm solids particles
·        Bowl cylindrical and conical section is made of duplex stainless steel SS316L or SS2205 by centrifugal casting
·        Screwer is protected by tungsten carbide tiles or hard alloy for longer life and easier replacement
·        Screwer flow distribution port and bowl solids discharge port are protected by tungsten carbide alloy or ceramics
·        Easy to adjust liquid discharge weir height for flexible application
·        Bowl assembly supported by the tighter belt for the protection of bearing in moving
.        Shock absorption is made of high strength composite material
·        Fixed and variable frequency control are optional for different applications
·        FAG and SKF bearing for longer and reliable operation
.        Electrical components: SIEMENS, Schneider Brand
