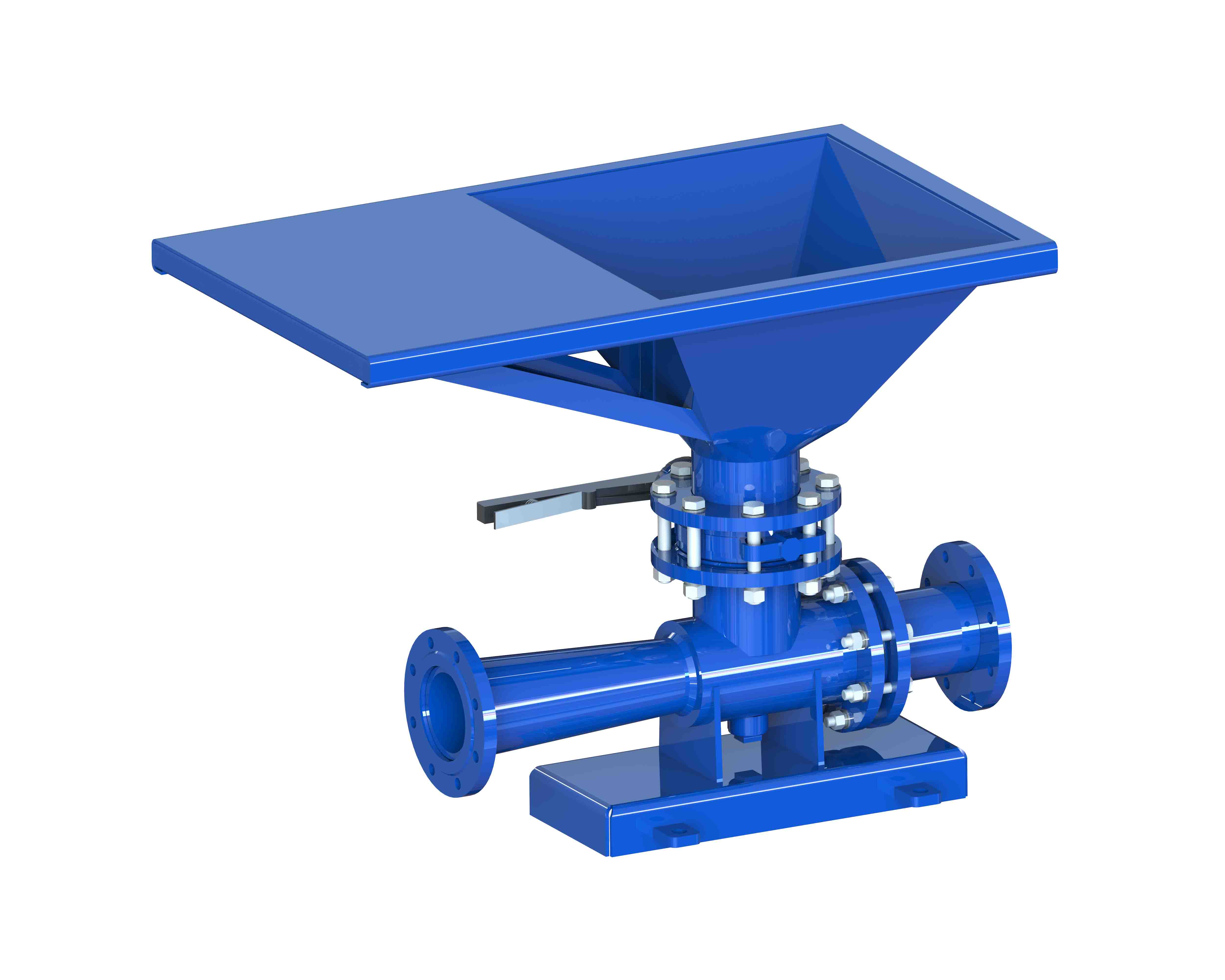

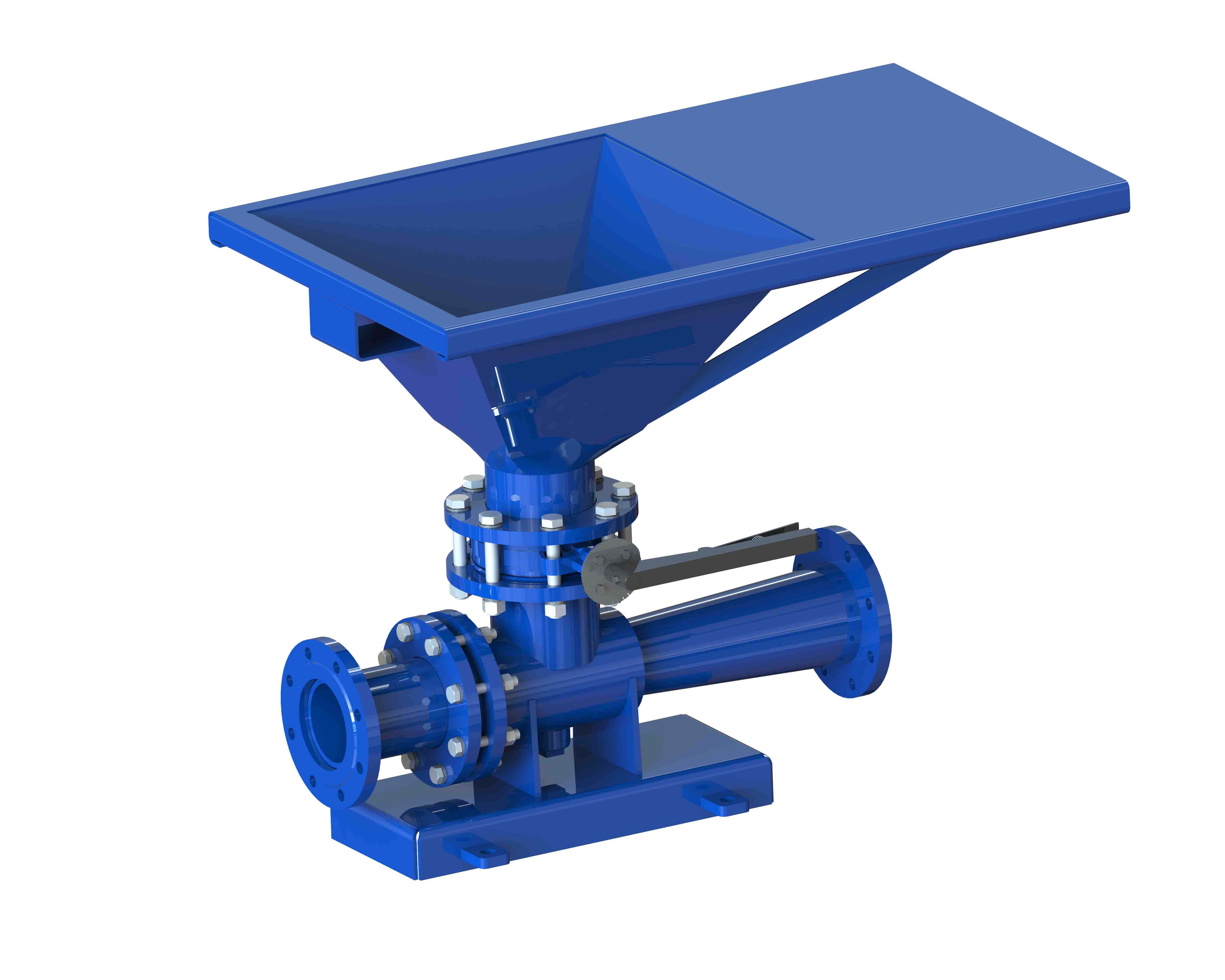

Mud Mixing Hopper

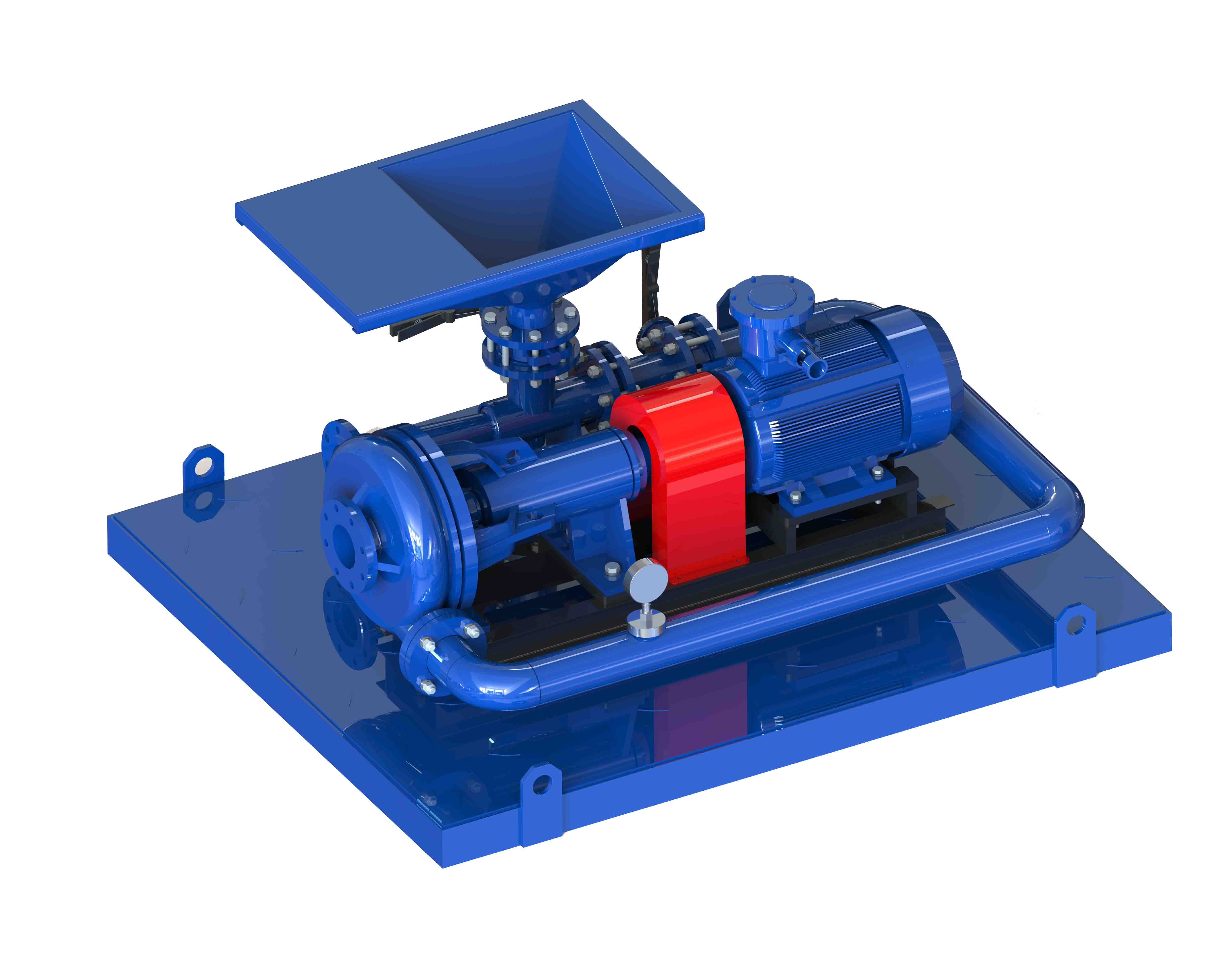

Mud mixing hopper is a special equipment to prepare and increase drilling fluids weight by adding and mixing bentonite, changing fluid density, viscosity and dehydration. One sand pump and one mud mixing hopper are instaled on a base with pipe valves. It has a more excellent operation performance if being matched with a shear pump.

BZ solids control  provides twin-hopper mud mixing device with two pumps according to the user requirements.


BZSL Mud Mixing Hopper Specification
Model BZSL150-50 BZSL150-40 BZSL150-30 BZSL100-25
Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Pump Model BZSB8X6-13 BZSB6X5-13 BZSB5X4-12 BZSB5X4-11
Pump Power 55KW 45KW 37KW 11KW
Working Pressure 0.25~0.4Mpa
Inlet DN150 DN100
Nozzle 50mm 40mm 30mm 25mm
Outlet 600X600mm
Mixing Speed ≤100kg /min ≤80kg /min ≤60kg /min ≤40kg /min
Mud Weight ≤2.8g/cm³ ≤2.4g/cm³ ≤2.0g/cm³
Mud Viscosity ≤100s ≤80s ≤60s ≤40s
EX Standard ExdIIBt4/IECEX/A-TEX
Dimension 2200×1700×1200mm 2200×1700×1200mm 2000×1650×1100mm 2000×1650×1100mm


Features:
·         Big hopper inlet diameter, high mixing capacity, Wide range of material applicability
·         Compact structure, less space needed and easy to move
·         Special spraying design, guarantee mixing time and performance
.         Ex motor and electrical components, mechanical seal pumps, long service life
