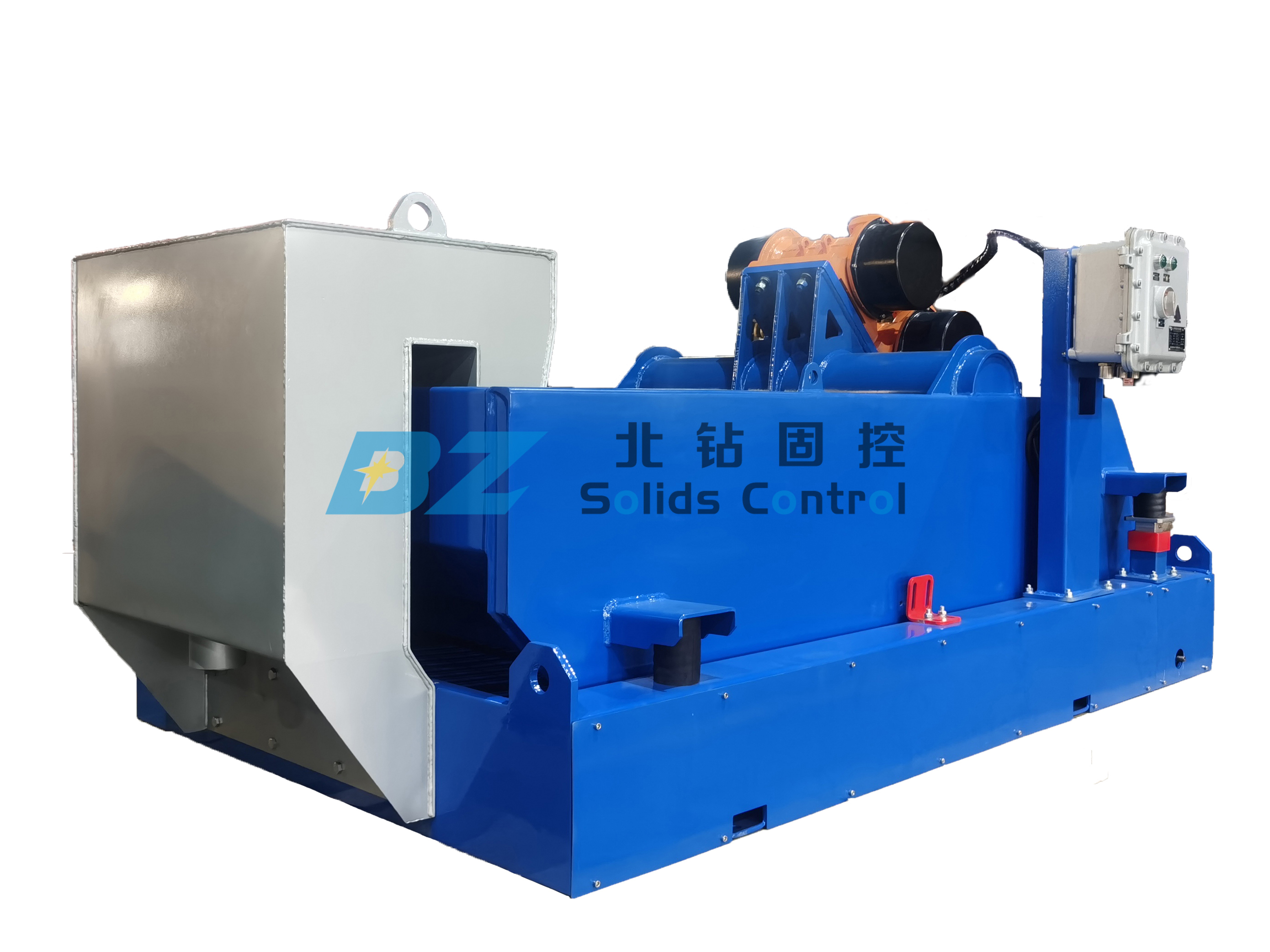

High-G Drying Shaker

BZ High-G drying shaker is designed to meet the demand of drilling waste management and environmental request. It is a kind of shale shaker with high G force. Usually be used to dry the drilling cuttings generated from primary solids control equipment including shale shakers, mud cleaner, desander and desilter. Reduce drilling waste and recover more drilling fluid. It plays an important role in treating drilling waste.

BZ solids control can provide customized high-G drying shakers for mining, drilling and environmental separation industries.




GBZS High G Drying Shaker Specification

Model GBZS584 GBZS585/GBZS585S
Vibration mode Liner Motion/Double Track
Capacity 140m³/h 165m³/h
Motor 2×2.2kW/2×2.2+1×1.3kW
Screen Qty(pcs) 4 5
Screen Size 585×1165mm 585×1165mm
Adjustable G Force ≥8.0G
Vibration Amplitude 5.0~6.5mm
Deck Angle Range -1°~5° -1°~4°
Noise <85db
EX Standard ExdIIBt4/IECEX/A-TEX
Weight 1530kg 1950kg
Dimension 3004X1978X1415mm 3597X1978X1415mm
Remark Above capacity amount is just for reference, will be different
depending on mesh number and mud conditions.

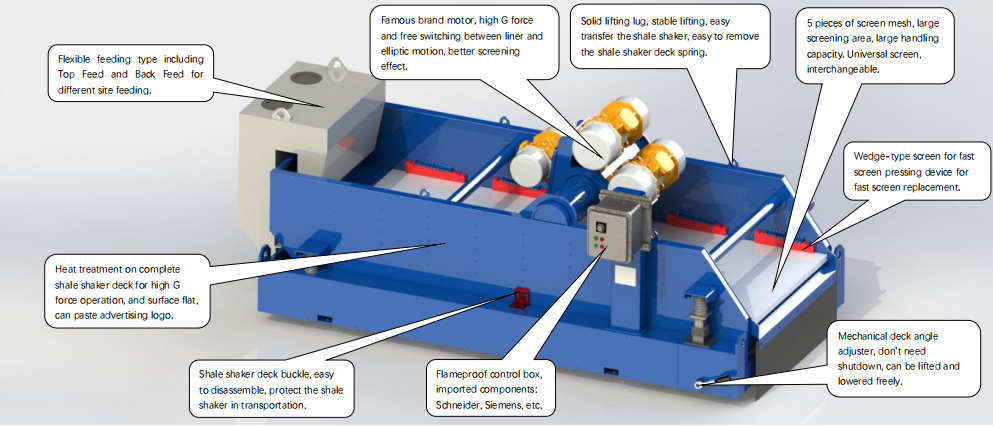

GBZS High G Drying Shale Shaker Dominance Diagram



Features:

.           Max 8.0 and adjustable G force, drying drilling cuttings efficiently
.           Heating treament on complete shaker deck, durable and reliable in high G force working environment
.           Thermal relay in electric control box has protection function of overload and phase lack
.           Liner Motion vibrate mode, high vibration amplitude, separating solids and liquid efficiently
.           Hopper feeding type, easy for screw conveyor feeding
.           Famous Brand Vibration Motors : IEC Ex, ATEX and UL Certified
.           Electrical components: SIEMENS, Schneider Brand
