Smart Solids Control and Separation Equipment

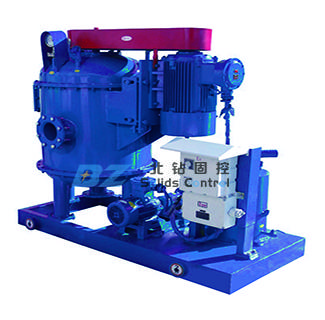

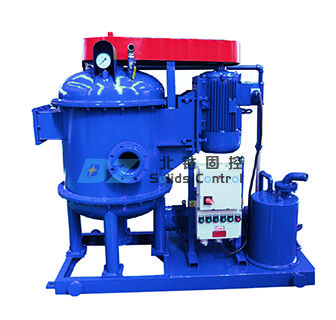

Vacuum Degasser


Vacuum degasser is a special equipment used to treat gas invated in drilling fluid, be also known as negative pressure degasser. Vacuum degasser removes quickly all kinds of gases invaded in drilling fluid, which plays a very important role in returning mud gravity and stabilizing mud performance. Meanwhile, vacuum degasser can also be used as a high-power agitator.

Vacuum degasser belongs to negative pressure degasser, its scientific and reasonable design structure realizes effective separation of gas and liquid, filter impurities, keep the exhaust pipe always unblocked. Different capacity vacuum degasser are available for different drilling depth.


BZCQ Vacuum Degasser Specification
Model BZCQ240 BZCQ270 BZCQ300 BZCQ360
Tank Diameter 700mm 800mm 900mm 1000mm
Capacity 240m³/h 270m³/h 300m³/h 360m³/h
Vacuum Degree -0.03~-0.045MPa
Drive Ratio 1.68 1.72
Handling Efficiency ≥95%
Main Motor Power 15kw 22kw 30kw 37kw
Pump Motor Power 2.2kw 3kw 4kw 7.5kw
Rotation Speed 860RPM 870RPM 876RPM 880RPM
EX Standard ExdIIBt4/IECEX/A-TEX
Weight 1150kg 1450kg 1860kg 2500kg
Dimension 1750×860×1500mm 2000×1000×1670mm 2250×1330×1650mm 2400×1500×1850mm


Features:
·        High gas remove efficiency up to 95%-99%, vacuum feeding, no extra feeding pump needed
.        High vacuum suction and discharge ability, high gas remove efficiency
.        Can be also used as a high-power agitator
·        Great painting works inside for longer service life under corrosive condition
·        Electrical components: ABB, Siemens, Schneider
.        Compact and small footprint
