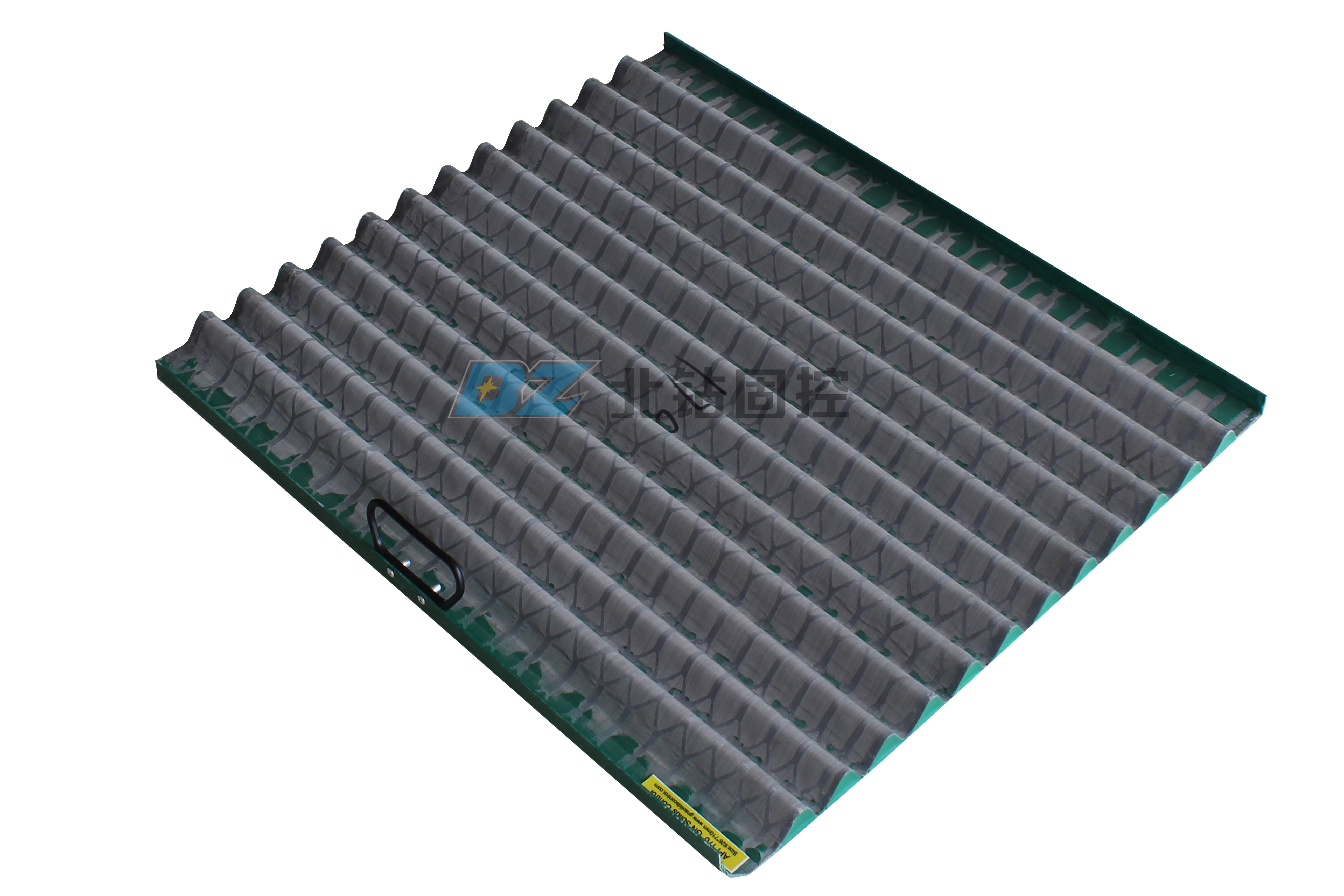

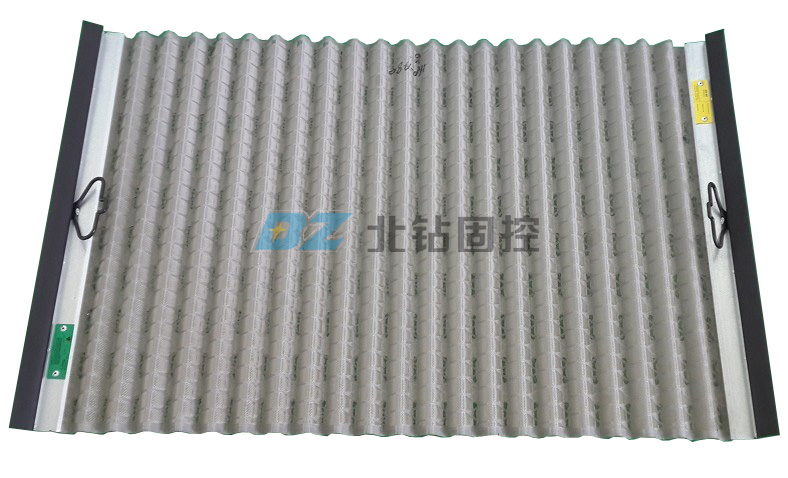

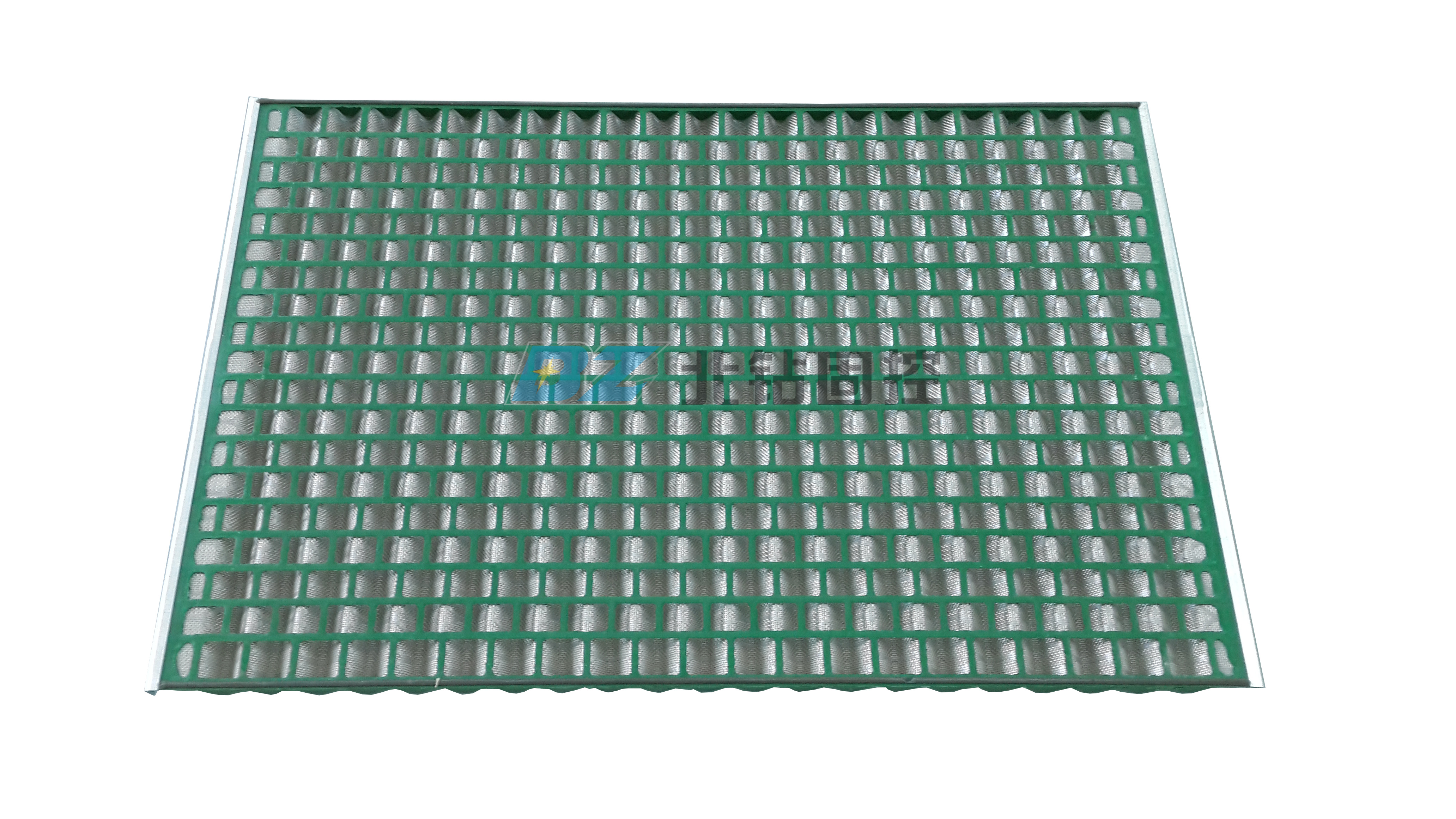

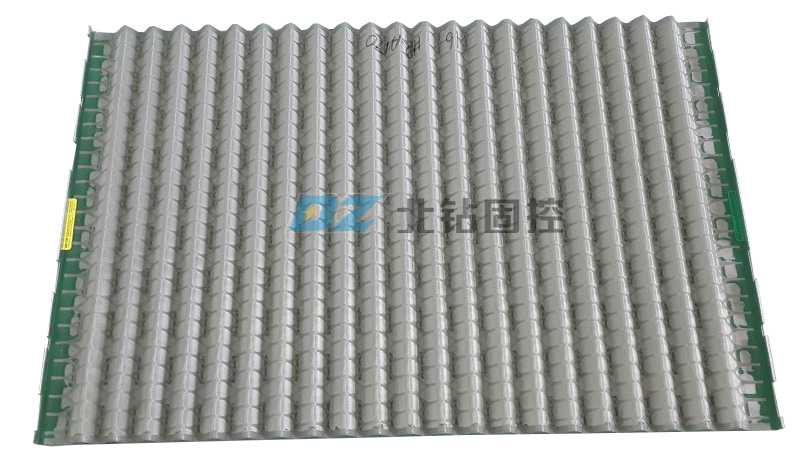

Corrugated replacement Shaker Screen Corrugated replacement Shaker Screen Corrugated replacement Shaker Screen has a unique wave shape of the mesh surface, wave type vibrating screen mesh is generally composed of 2 or 3 layers of stainless steel 304 or 316 material mesh cloth after composite rolling and bending forming with metal plate with holes. Mesh Dimension Adaptation model 20-325 697×1053mm FLC2000 20-325 695×1050mm FLC500 20-325 710×626mm D600 20-325 567×1070mm D-HYP API Size Parameters API Numbe D 100 Separation(Micron) API Number D 100 Separation(Micron) API 20 ＞780.0 TO 925.0 API 100 ＞137.5 TO 165.0 API 30 ＞550.0 TO 655.0 API 120 ＞116.5 TO 137.5 API 35 ＞462.0 TO 550.0 API 140 ＞98.0 TO 116.5 API 40 ＞390.0 TO 462..0 API 170 ＞82.5 TO 98.0 API 50 ＞275.0 TO 390.0 API 200 ＞69.0 TO 82.5 API 60 ＞213.0 TO 275.0 API 230 ＞58.0 TO 69.0 API 70 ＞196.0 TO 213.0 API 270 ＞49.0 TO 58.0 API 80 ＞165.0 TO 196.0 API 320 ＞41.5 TO 49.0 BZ solids control has rich production experience and mature process, according to the customer's different requirements to produce a variety of specifications of Corrugated replacement Shaker Screen.
