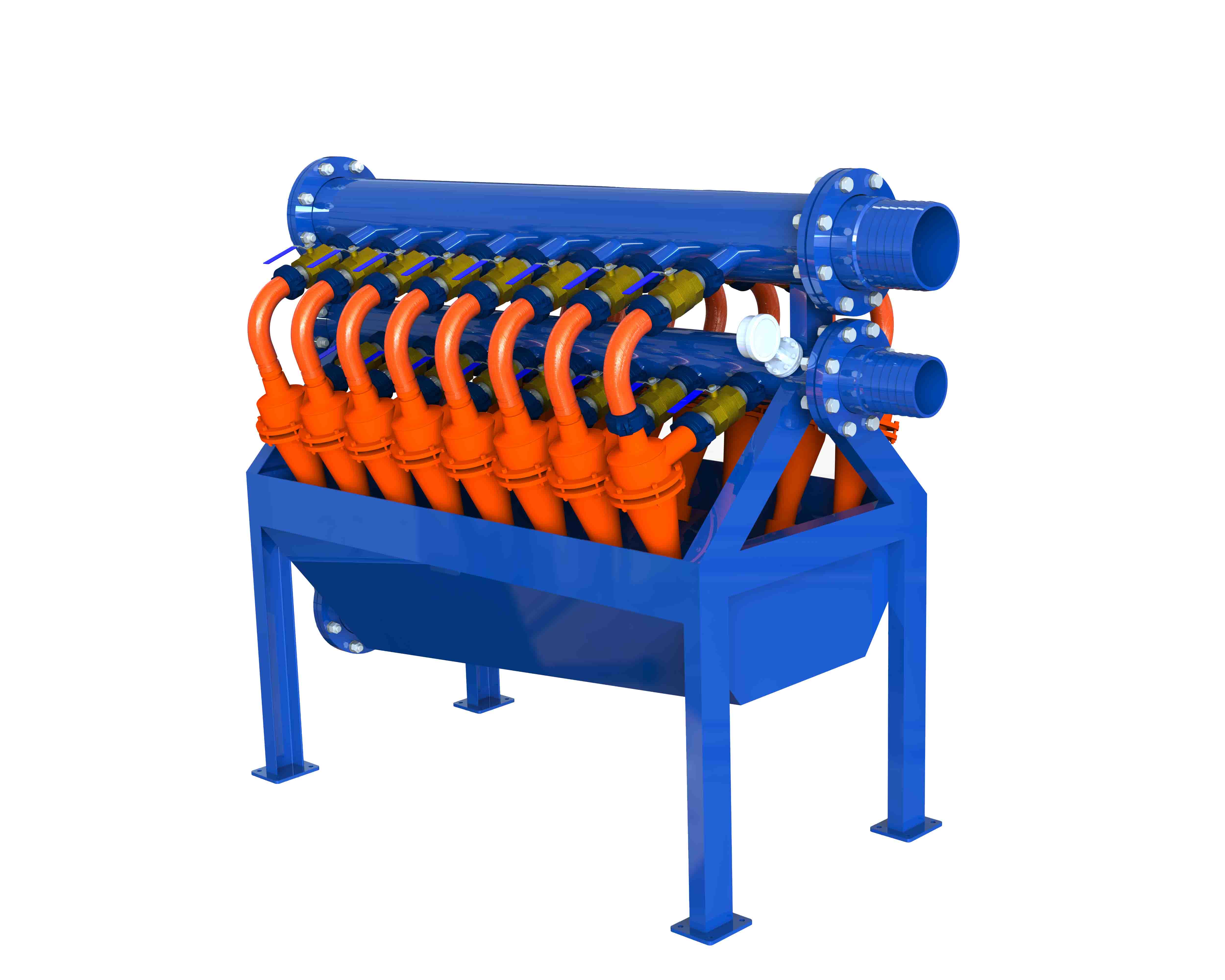

Desilter Desilter is the third phase solids control equipment to treat drilling fluid, usually working between desander and centrifuge. The most common cone diameter is 4”, mainly to separate solids in 15-45μm. Quantity of hydrocyclones can be adjusted according to treating capacity demand. An underflow shale shaker is optional. BZCN Desilter Specification Model BZCN100-6N BZCN100-8N BZCN100-12N BZCN100-16N Capacity 90m³/h 120m³/h 240m³/h 360m³/h Desilter Size 4inch Desilter Qty(pcs) 6 8 12 16 Working Pressure 0.25-0.4MPa Particle Size 15μm-45μm Shaker BZS60 BZS752 EX Standard ExdIIBt4/IECEX/A-TEX Dimension 1510X1360X1810mm 1510X1360X1810mm 1835X1430X2085mm 1835X1430X2085mm Features · 100% Polyurethane(PU) Material for desander cones with longer using life · High separation efficiency, 15-45um drilling cuttings can be separated . Quantity fo hydrocyclones can be adjusted by different treatment capacity request · Compact design with small footprint · Different size of shale shaker are optional . Spraying nozzle design of cone outlet, no block problem · Famous brand vibration motors : IEC Ex, ATEX and UL certified · Electrical components: SIEMENS, Schneider
