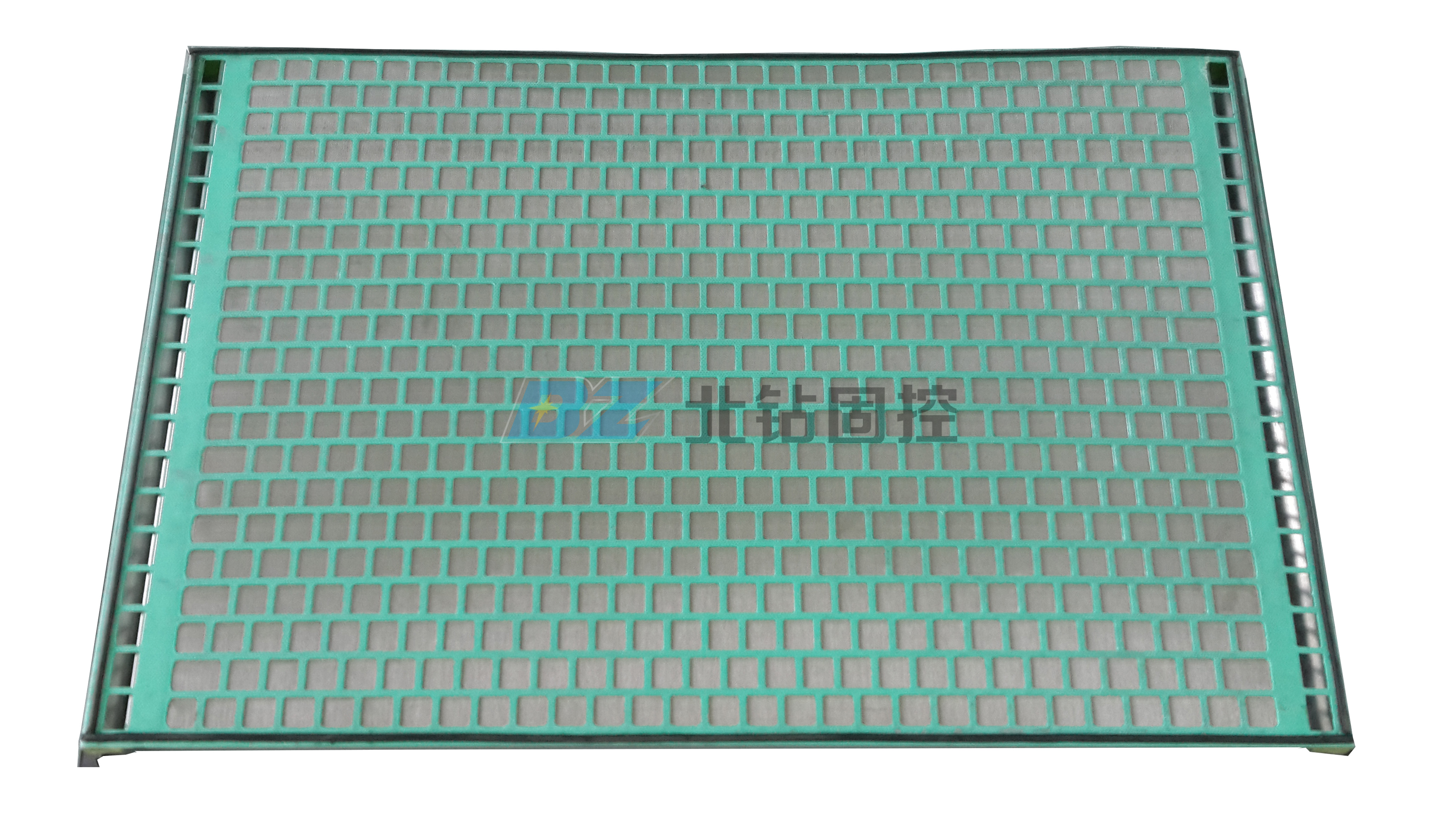

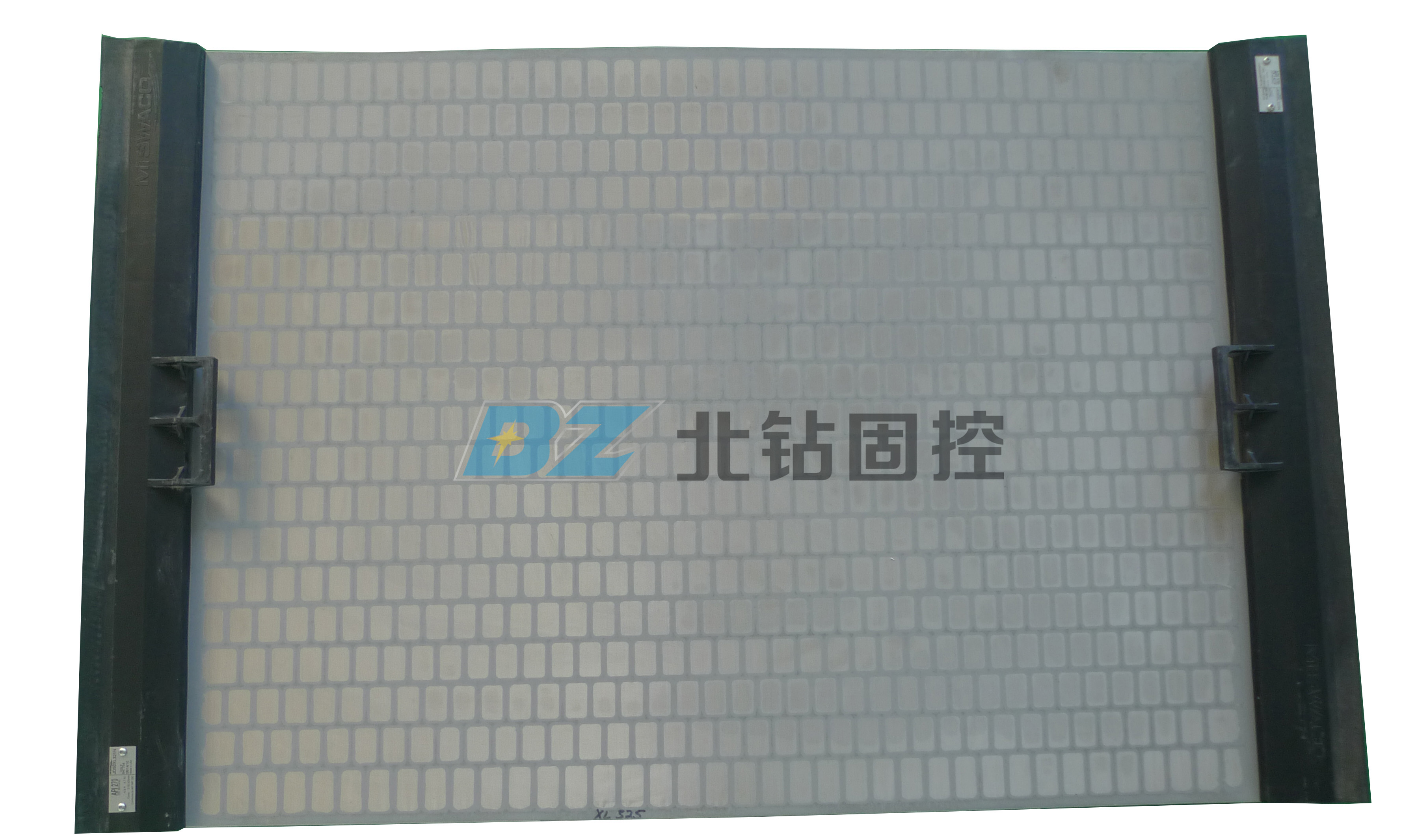

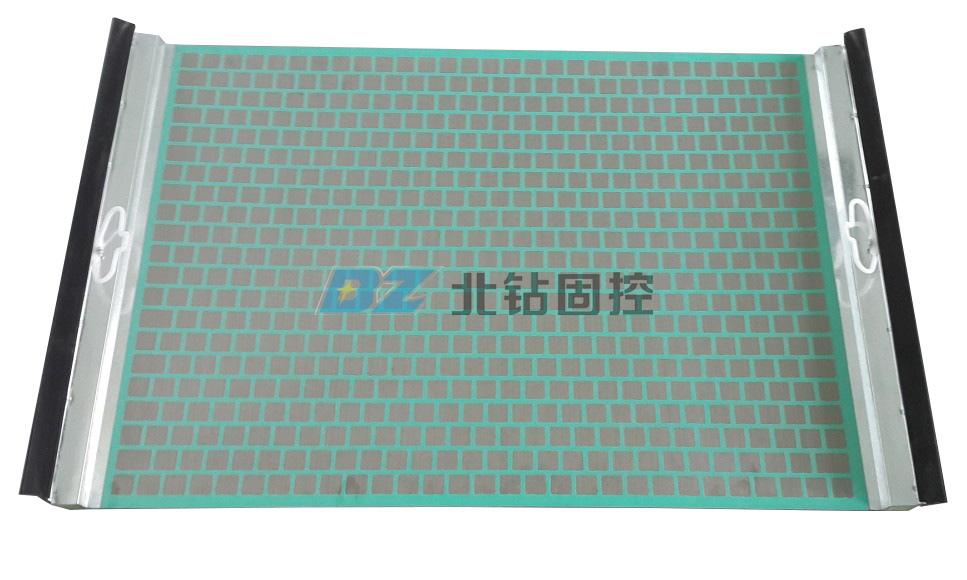

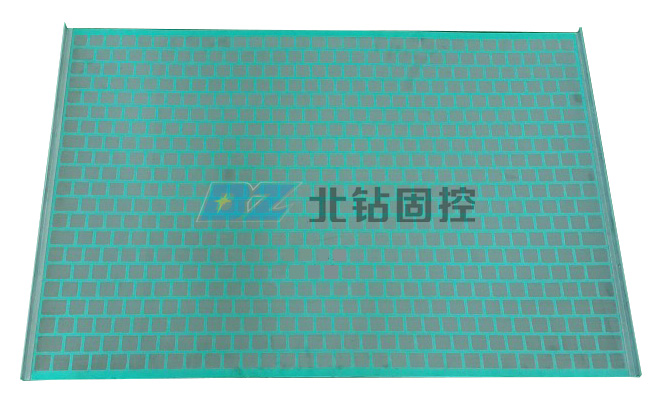

Flat replacement Shaker Screen Flat replacement Shaker Screen Flat replacement Shaker Screen is the most commonly used oil vibrating screen net, can be widely used in different conditions of drilling operations, plate hook edge screen is usually composed of 2 to 3 layers of stainless steel mesh bonded on the metal lining plate. Mesh Dimension Adaptation model 20-325 697×1053mm FLC2000 20-325 695×1050mm FLC500 20-325 697× 846 mm FLC313M 20-325 1212×1141mm ALS 20-325 915×1150mm LCM-2D API Size Parameters API Numbe D 100 Separation(Micron) API Number D 100 Separation(Micron) API 20 ＞780.0 TO 925.0 API 100 ＞137.5 TO 165.0 API 30 ＞550.0 TO 655.0 API 120 ＞116.5 TO 137.5 API 35 ＞462.0 TO 550.0 API 140 ＞98.0 TO 116.5 API 40 ＞390.0 TO 462..0 API 170 ＞82.5 TO 98.0 API 50 ＞275.0 TO 390.0 API 200 ＞69.0 TO 82.5 API 60 ＞213.0 TO 275.0 API 230 ＞58.0 TO 69.0 API 70 ＞196.0 TO 213.0 API 270 ＞49.0. TO 58.0 API 80 ＞165.0 TO 196.0 API 320 ＞41.5 TO 49.0 BZ solids control has rich production experience and mature process, according to the customer's different requirements to produce a variety of specifications of Flat replacement Shaker Screen.
